CMB1671V隔离电源变压器

产品简介

变压器 CMB1671V 与 CMP7892 配套使用，可以实现9-36V输入，功率不大于10W隔离稳压电源，可以用于各类隔离供电场合。

购买样品

在立创商城购买

在淘宝商店购买

主要参数

参数数值
电感量(L[3,4-1,2])13.5 μH Min
匝比(N[3,4-1,2]:N[10-9]:N[7-6])1:1:1
直流电阻(N[3,4-1,2])100 mΩ Max
直流电阻(N[10-9])200 mΩ Max
直流电阻(N[7-6])200 mΩ Max
耐压等级3.5 kVDC

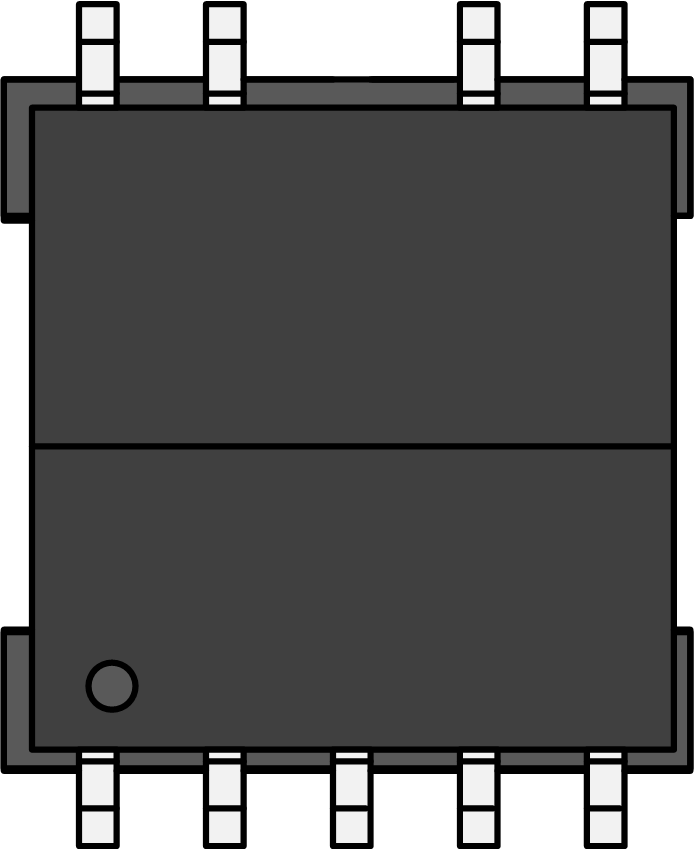

封装外形

SMD-9

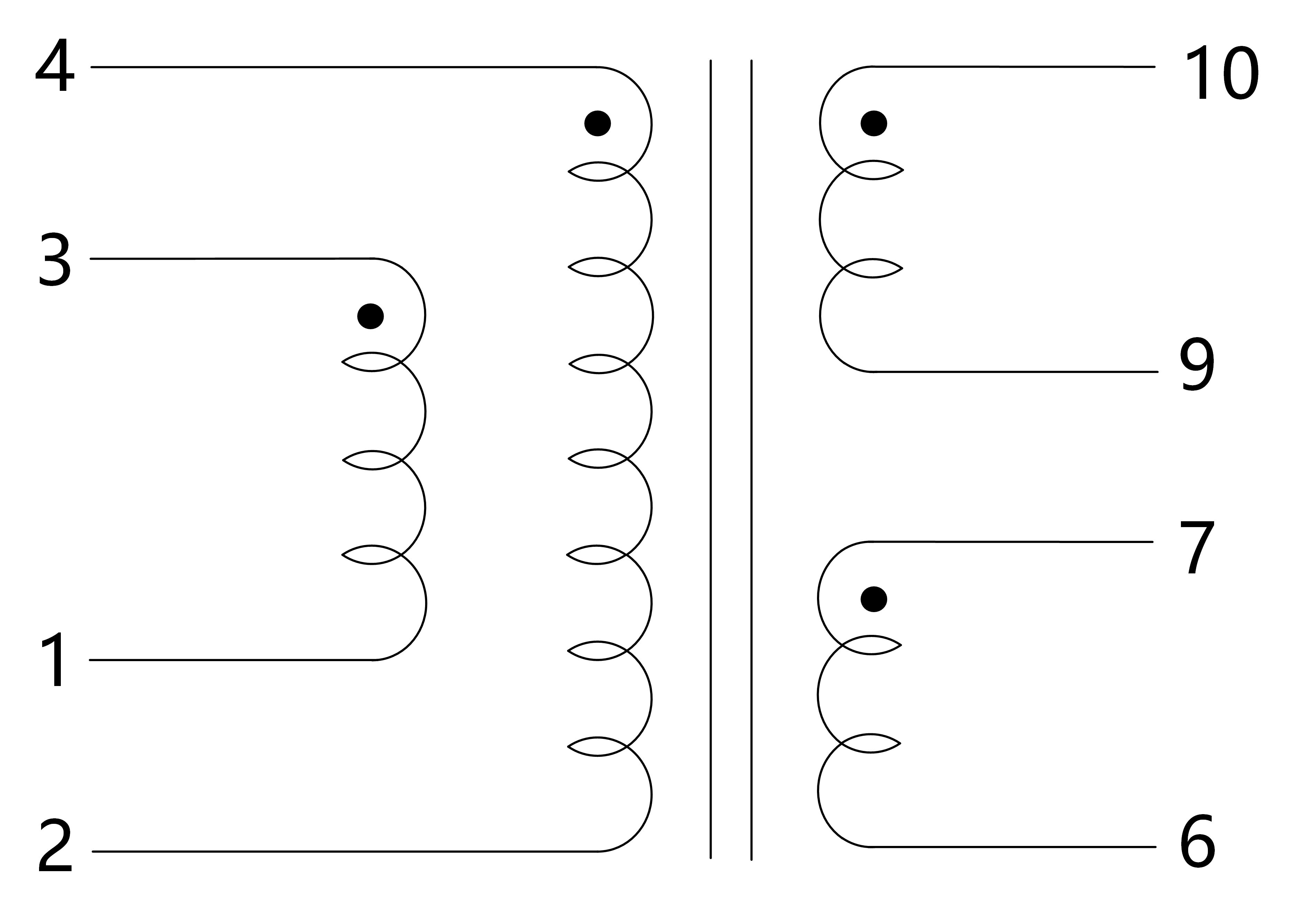

原理图

应用方案

方案编号
芯片变压器输入Vin(min)Vin(典型值)Vin(max)Vout(V)功率(W)耐压双路输出隐藏URL(方案)隐藏URL(芯片)隐藏URL(变压器)
F0505S-1W-6503S-38C0NCMP6503SCMT38C0N定压4.555.5513.0KVDCNA/wp-content/uploads/solution/CMP6503S/F0505S-1W-6503S-38C0N/F0505S-1W-6503S-38C0N-A-1.jpg/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT38C0N-photo-A.jpg
F1205S-1W-6713HV-38G5NCMP6713HVCMT38G5N定压10.81213.2513.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1205S-1W-6713HV-38G5N/F1205S-1W-6713HV-38G5N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT38G5N-photo-A.jpg
F1205S-2W-6713HV-78G5NCMP6713HVCMT78G5N定压10.81213.2523.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1205S-2W-6713HV-78G5N/F1205S-2W-6713HV-78G5N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G5N-photo-A.jpg
F1209S-2W-6713HV-78L1NCMP6713HVCMT78L1N定压10.81213.2923.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1209S-2W-6713HV-78L1N/F1209S-2W-6713HV-78L1N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78L1N-photo-A.jpg
F1212S-2W-6713HV-78F0NCMP6713HVCMT78F0N定压10.81213.21223.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1212S-2W-6713HV-78F0N/F1212S-2W-6713HV-78F0N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
F1505S-2W-6713HV-78F3NCMP6713HVCMT78F3N定压13.51516.5523.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1505S-2W-6713HV-78F3N/F1505S-2W-6713HV-78F3N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F3N-photo-A.jpg
F1515S-2W-6713HV-78F0NCMP6713HVCMT78F0N定压13.51516.51523.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F1515S-2W-6713HV-78F0N/F1515S-2W-6713HV-78F0N-A-.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
F2405S-2W-6713HV-78HANCMP6713HVCMT78HAN定压21.62426.4523.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F2405S-2W-6713HV-78HAN/F2405S-2W-6713HV-78HAN-A-1.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78HAN-photo-A.jpg
F2409S-2W-6713HV-78G9NCMP6713HVCMT78G9N定压21.62426.4923.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F2409S-2W-6713HV-78G9N/F2409S-2W-6713HV-78G9N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G9N-photo-A.jpg
F2412S-2W-6713HV-78F8NCMP6713HVCMT78F8N定压21.62426.41223.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F2412S-2W-6713HV-78F8N/F2412S-2W-6713HV-78F8N-A-1.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F8N-photo-A.jpg
F2415S-2W-6713HV-78G6NCMP6713HVCMT78G6N定压21.62426.41523.0KVDCNA/wp-content/uploads/solution/CMP6713HV/F2415S-2W-6713HV-78G6N/F2415S-2W-6713HV-78G6N-A-1.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G6N-photo-A.jpg
B0305S-1W-6510V-397BNCMP6510VCMT397BN定压2.93.33.6511.5KVDCNA/wp-content/uploads/solution/CMP6510V/B0305S-1W-6510V-397BN/B0305S-1W-6510V-397BN-A.jpg/wp-content/uploads/product/cmp/CMP6510V-photo-A.jpg/wp-content/uploads/product/CMT/CMT397BN-photo-A.jpg
B0505S-1W-6510V-3990KCMP6510VCMT3990K定压4.555.5511.5KVDCNA/wp-content/uploads/solution/CMP6510V/B0505S-1W-6510V-3990K/B0505S-1W-6510V-3990K-A.jpg/wp-content/uploads/product/cmp/CMP6510V-photo-A.jpg/wp-content/uploads/product/CMT/CMT3990K-photo-A.jpg
B0505S-1W-6503S-38C0NCMP6503SCMT38C0N定压4.555.5511.5KVDCNA/wp-content/uploads/solution/CMP6503S/B0505S-1W-6503S-38C0N/B0505S-1W-6503S-38C0N-A.jpg/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT38C0N-photo-A.jpg
B1205S-1W-6713HV-38G5NCMP6713HVCMT38G5N定压10.81213.2511.5KVDCNA/wp-content/uploads/solution/CMP6713HV/B1205S-1W-6713HV-38G5N/B1205S-1W-6713HV-38G5N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT38G5N-photo-A.jpg
URA2415G15D-7W-7892-1671VCMP7892CMB1671V宽压924361573.5KVDC15/wp-content/uploads/solution/CMP7892/URA2415G15D-10W-7892-1671V/URA2415G15-10W-7892-1671V_A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB1671V-photo-A.jpg
URB2409D-6W-7892-1670VCMP7892CMB1670V宽压92436963.5KVDCNA/wp-content/uploads/solution/CMP7892/URB2409D-6W-7892-1670V/URB2409D-6W-7892-1670V_A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB1670V-photo-A.jpg
VRB1512D-10W-7892-1670VCMP7892CMB1670V宽压12152412103.5KVDCNA/wp-content/uploads/solution/CMP7892/VRB1512D-10W-7892-1670V/VRB1512D-10W-7892-1670V_A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB1670V-photo-A.jpg
WRB1209S-3W-7892-8740K1CMP7892CMB8740K1宽压91218931.5KVDCNA/wp-content/uploads/solution/CMP7892/WRB1209S-3W-7892-8740K1/WRB1209S-3W-7892-8740K1-A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB8740K1-photo-A.jpg
WRB1212S-3W-7892-8740K1CMP7892CMB8740K1宽压912181231.5KVDCNA/wp-content/uploads/solution/CMP7892/WRB1212S-3W-7892-8740K1/WRB1212S-3W-7892-8740K1-A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB8740K1-photo-A.jpg
WRB1215S-3W-7892-8740K1CMP7892CMB8740K1宽压912181531.5KVDCNA/wp-content/uploads/solution/CMP7892/WRB1215S-3W-7892-8740K1/WRB1215S-3W-7892-8740K1-A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB8740K1-photo-A.jpg
WRB1224S-3W-7892-8735KCMP7892CMB8735K宽压912182431.5KVDCNA/wp-content/uploads/solution/CMP7892/WRB1224S-3W-7892-8735K/WRB1224S-3W-7892-8735k-A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB8735K-photo-A.jpg
VRB1205D-2W-7892-6398KCMP7892CMB6398K宽压91218521.5KVDCNA/wp-content/uploads/solution/CMP7892/VRB1205D-2W-7892-6398K/VRB1205D-2W-7892-6398K-A.jpg/wp-content/uploads/product/cmp/CMP7892-photo-A.jpg/wp-content/uploads/product/cmb/CMB6398K-photo-A.jpg
B0305D-1W-6510V-397BNCMP6510VCMT397BN定压2.93.33.6512.5KVACNA/wp-content/uploads/solution/CMP6510V/B0305D-1W-6510V-397BN/B0305D-1W-6510V-397BN-A.jpg/wp-content/uploads/product/cmp/CMP6510V-photo-A.jpg/wp-content/uploads/product/CMT/CMT397BN-photo-A.jpg
B0505D-1W-6503S-38C0NCMP6503SCMT38C0N定压4.555.5512.5KVACNA/wp-content/uploads/solution/CMP6503S/B0505D-1W-6503S-38C0N/B0505D-1W-6503S-38C0N-A.jpg/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT38C0N-photo-A.jpg
B0505D-1W-6503S-6870NCMP6503SCMT6870N定压4.555.5512.5KVACNA/wp-content/uploads/solution/CMP6503S/B0505D-1W-6503S-6870N/B0505D-1W-6503S-6870N-A.jpg/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT6870N-photo-A.jpg
B0505D-1W-6510V-3990KCMP6510VCMT3990K定压4.555.5511.5KVDCNA/wp-content/uploads/solution/CMP6510V/B0505D-1W-6510V-3990K/B0505D-1W-6510V-3990K-A.jpg/wp-content/uploads/product/cmp/CMP6510V-photo-A.jpg/wp-content/uploads/product/CMT/CMT3990K-photo-A.jpg
B0512D-1W-6503S-686CNCMP6503SCMT686CN定压4.555.51212.5KVACNA/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT686CN-photo-A.jpg
B0505D-0W25-6503S-2202KACMP6503SCMT2202KA定压4.555.550.252.5KVACNA/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT2202KA-photo-A.jpg
B1205D-1W-6713HV-38G5NCMP6713HVCMT38G5N定压10.81213.2522.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1205D-1W-6713HV-38G5N/B1205D-1W-6713HV-38G5N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT38G5N-photo-A.jpg
B1209D-2W-6793RE-78L1NCMP6793RECMT78L1N定压10.81213.2922.5KVACNA/wp-content/uploads/solution/CMP6793RE/B1209D-2W-6793RE-78L1N/B1209D-2W-6793RE-78L1N_A.jpg/wp-content/uploads/product/cmp/CMP6793RE-photo-A.jpg/wp-content/uploads/product/CMT/CMT78L1N-photo-A.jpg
B1205D-2W5-6793RE-78G5NCMP6793RECMT78G5N定压10.81213.252.52.5KVACNA/wp-content/uploads/solution/CMP6793RE/B1205D-2W5-6793RE-78G5N/B1205D-2W5-6793RE-78G5N_A.jpg/wp-content/uploads/product/cmp/CMP6793RE-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G5N-photo-A.jpg
B1205D-2W-6713R-78G5NCMP6713RCMT78G5N定压10.81213.2522.5KVACNA/wp-content/uploads/product/cmp/CMP6713R-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G5N-photo-A.jpg
B1205D-2W-6713HV-78G5NCMP6713HVCMT78G5N定压10.81213.2522.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1205D-2W-6713HV-78G5N/B1205D-2W-6713HV-78G5N_A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78G5N-photo-A.jpg
B1209D-2W-6713HV-78L1NCMP6713HVCMT78L1N定压10.81213.2922.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1209D-2W-6713HV-78L1N/B1209D-2W-6713HV-78L1N_A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78L1N-photo-A.jpg
B1212D-3W-6713HV-78F0NCMP6713HVCMT78F0N定压10.81213.21232.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1212D-3W-6713HV-78F0N/B1212D-3W-6713HV-78F0N_A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
B1212D-3W-6793RE-78F0NCMP6793RECMT78F0N定压10.81213.21232.5KVACNA/wp-content/uploads/solution/CMP6793RE/B1212D-3W-6793RE-78F0N/B1212D-3W-6793RE-78F0N_A.jpg/wp-content/uploads/product/cmp/CMP6793RE-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
B1505D-2W-6713HV-78F3NCMP6713HVCMT78F3N定压13.51516.5522.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1505D-2W-6713HV-78F3N/B1505D-2W-6713HV-78F3N-A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F3N-photo-A.jpg
B1515D-3W-6713HV-78F0NCMP6713HVCMT78F0N定压13.51516.51532.5KVACNA/wp-content/uploads/solution/CMP6713HV/B1515D-3W-6713HV-78F0N/B1515D-3W-6713HV-78F0N_A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
B1515D-3W5-6793RE-78F0NCMP6793RECMT78F0N定压13.51516.5153.52.5KVACNA/wp-content/uploads/solution/CMP6793RE/B1515D-3W5-6793RE-78F0N/B1515D-3W5-6793RE-78F0N_A.jpg/wp-content/uploads/product/cmp/CMP6793RE-photo-A.jpg/wp-content/uploads/product/CMT/CMT78F0N-photo-A.jpg
B2405D-3W-6713HV-78HANCMP6713HVCMT78HAN定压21.62426.4532.5KVACNA/wp-content/uploads/solution/CMP6713HV/B2405D-3W-6713HV-78HAN/B2405D-3W-6713HV-78HAN_A.jpg/wp-content/uploads/product/cmp/CMP6713HV-photo-A.jpg/wp-content/uploads/product/CMT/CMT78HAN-photo-A.jpg
A0512G12D-1W-6503S-566CNCMP6503SCMT566CN定压4.555.51213.0KVAC12/wp-content/uploads/solution/CMP6503S/A0512G12D-1W-6503S-566CN/A0512G12D-1W-6503S-566CN_A.jpg/wp-content/uploads/product/cmp/CMP6503S-photo-A.jpg/wp-content/uploads/product/CMT/CMT566CN-photo-A.jpg

技术文档

文档类型文档名称
数据手册 CMB1671V 隔离变压器
